Motor & ESC

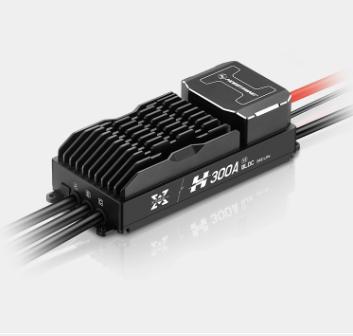

H300A24SBLDCV2 Input Voltage:12-28S (36-130V) Continuous current:140A Weight (Without Cable):800gSize:175x76x47mm Communication protocol:CAN/RS485(Serial Port Customizable) Isolation mode: Throttle and Communication Isolation

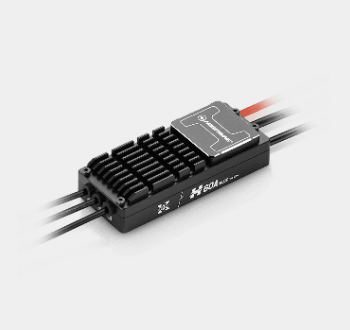

H60A6SBLDCFOC Input Voltage: 6-14S(18-63V) Continuous current: 25A(Good heat dissipation) Weight(without wire): 67g Size:78.5x32.5x18.4mm Communication protocol: CAN(Custom Serial port) Isolation mode: Customizable Throttle Isolation

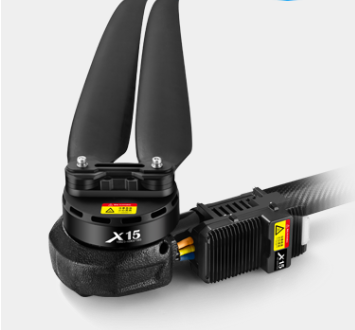

X15 Agricultural UAV thrust systems Thrust/rotor: 32.5-37.5kgTotal Weight: 5908g (Inc prop) Recommended LiPo Battery: 18S (LiPo) Propeller: MFP 63x24 Tube Diameter: 60mm Recommended Drone: For 70Lagriculturalquadcopter

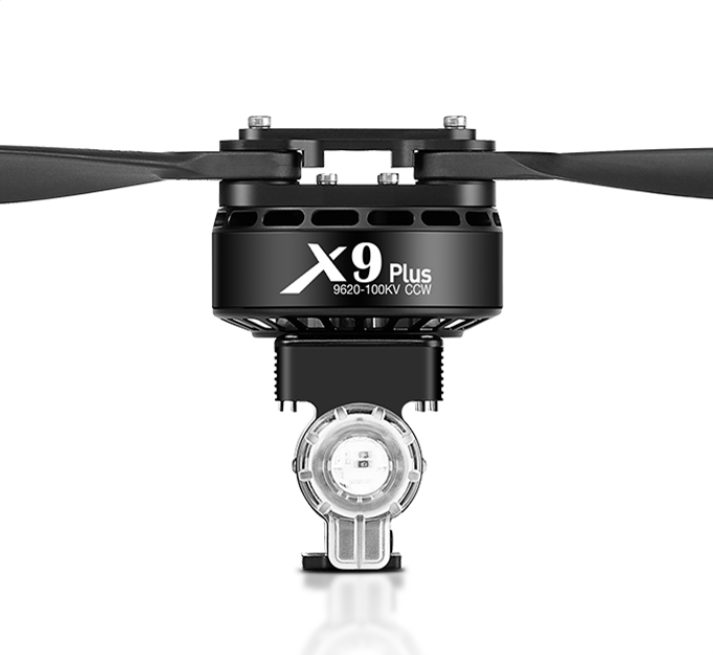

X9plus Agricultural UAV thrust systems Thrust/rotor: 11-13kg/axis Total Weight: 1760g Recommended LiPo Battery: 12-14S Propeller: MFP 36x19.0 Tube Diameter: 40mm Recommended Drone: For 20Lagricultural quadcopter

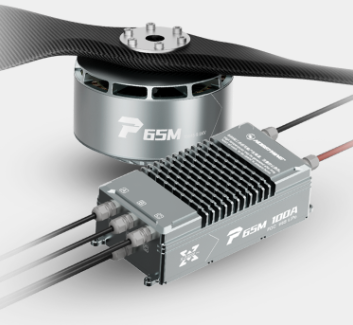

P65M propulsion System for Industrial Drones Recommended takeoff weight per axis:65kg Recommended takeoff weight per axis:7.43kg Lithium compatible:96~107S(LiPo) Diameter X Thread Pitch: MSC 72x25 Tube outer diameter: Φ60mm

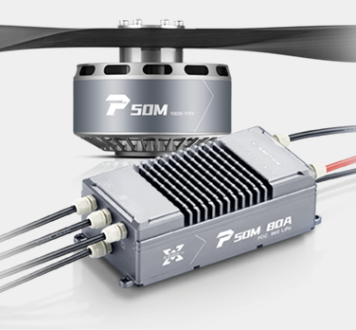

P50M Propulsion System for Industrial Drones Thrust/rotor:50kgWeight (With Cable & Props): 6.1~6.3kgInput Voltage: 280-450VPropeller: MSC 64x20/USC 54x23 Tube Diameter: Φ60mm

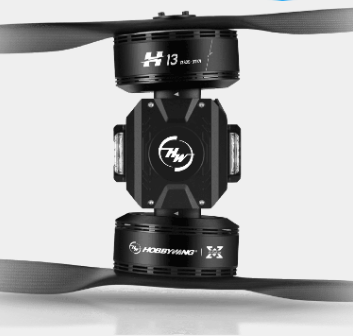

H13 Original Name: H13Propulsion System for Industrial DronesThrust/rotor:45kgTotal Weight: 7890+100g/8010+100g Recommended LiPo Battery: 24S/28S(LiPo) Propeller:MP54x20"/MP57x20"Tube Diameter: Φ60mm

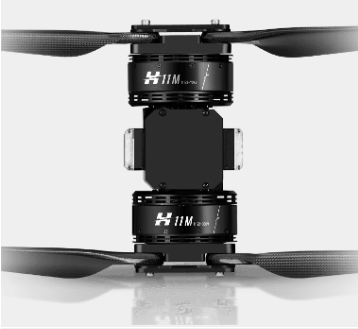

H11M Propulsion System for Industrial Drones Thrust/rotor: 25~28kg/axis Total Weight:4357gRecommended LiPo Battery: 14S Diameter XThread Pitch: MFC 48x17.5 Powertrain Arm Tube Outer Diameter: Φ50mm
